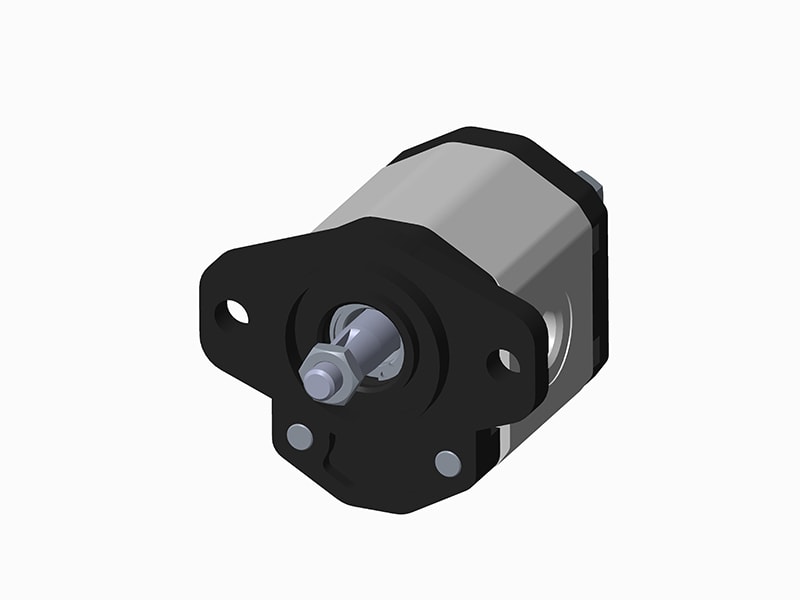

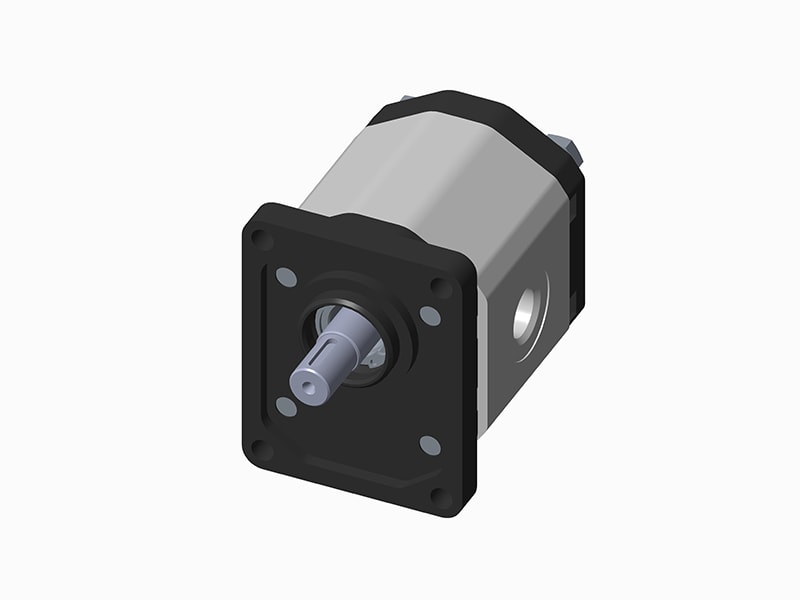

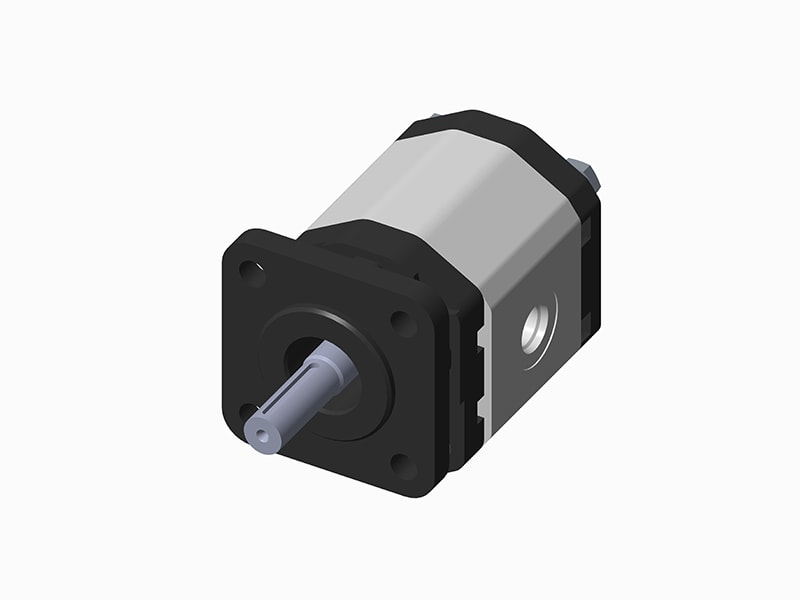

Group 1.25 External Gear Pump Technical Parameter
Displacement | Suction absolute pressure | Max. continuous pressure | Max. intermittent pressure | Max. peak pressure | Min. speed | Max. speed | Volumetric efficiency |
V | Pe | P1 | P2 | P3 | nmin | nmax | ηv |
cm³/rev. | bar | r/nin | % |
1.4 | 0.7...3 | 250 | 270 | 290 | 800 | 6000 | ≥90 |
2.1 | ≥91 |
2.8 | 5000 |
3.5 |
4.1 | 600 | 4000 |
5.2 | 230 | 245 | 260 | ≥92 |
6.2 | 3800 |
7.6 | 200 | 215 | 230 | 3200 |
9.3 | 180 | 195 | 210 | 2600 |
11 | 170 | 185 | 200 | 2200 | ≥94 |
13.8 | 150 | 165 | 180 | 1800 |

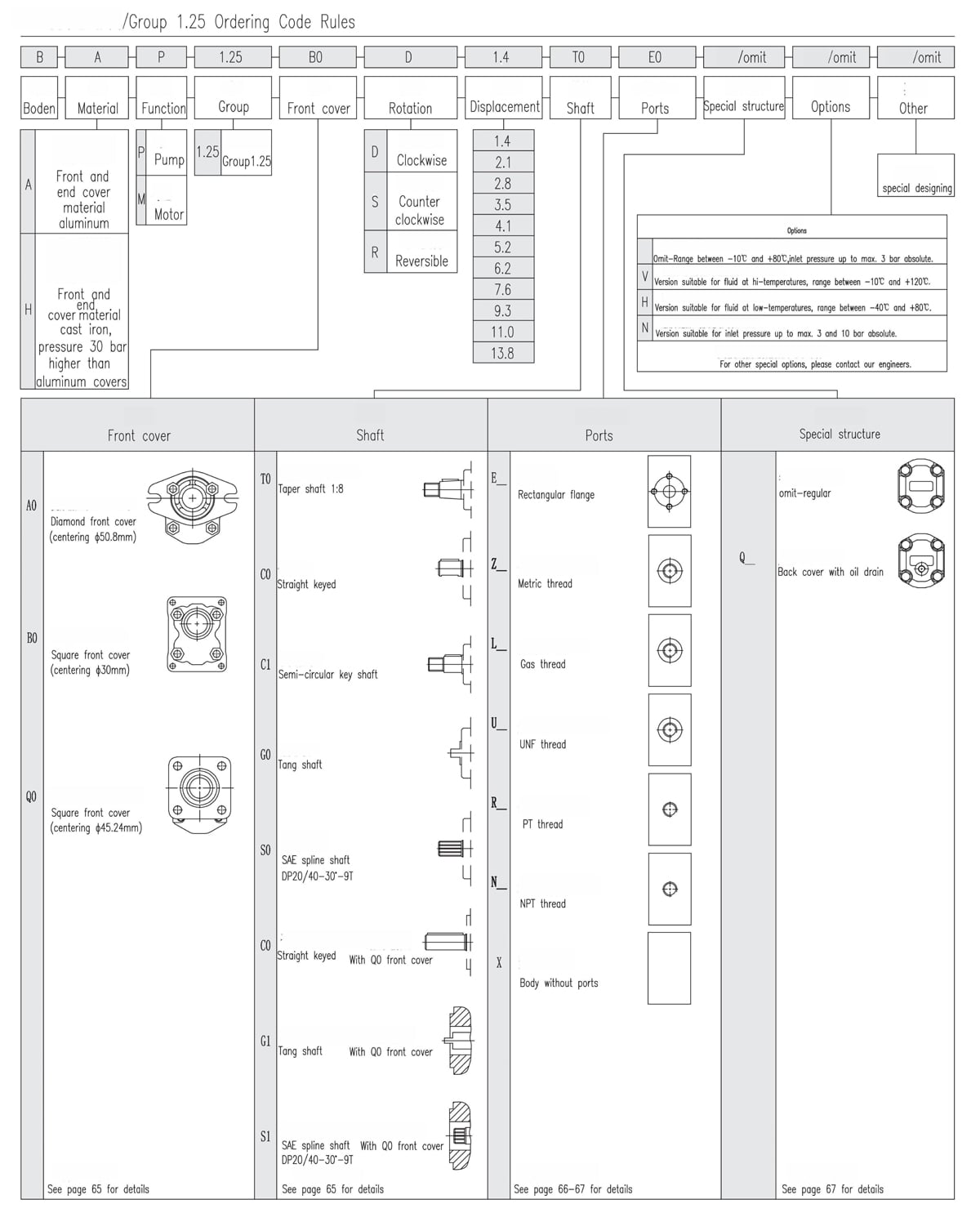

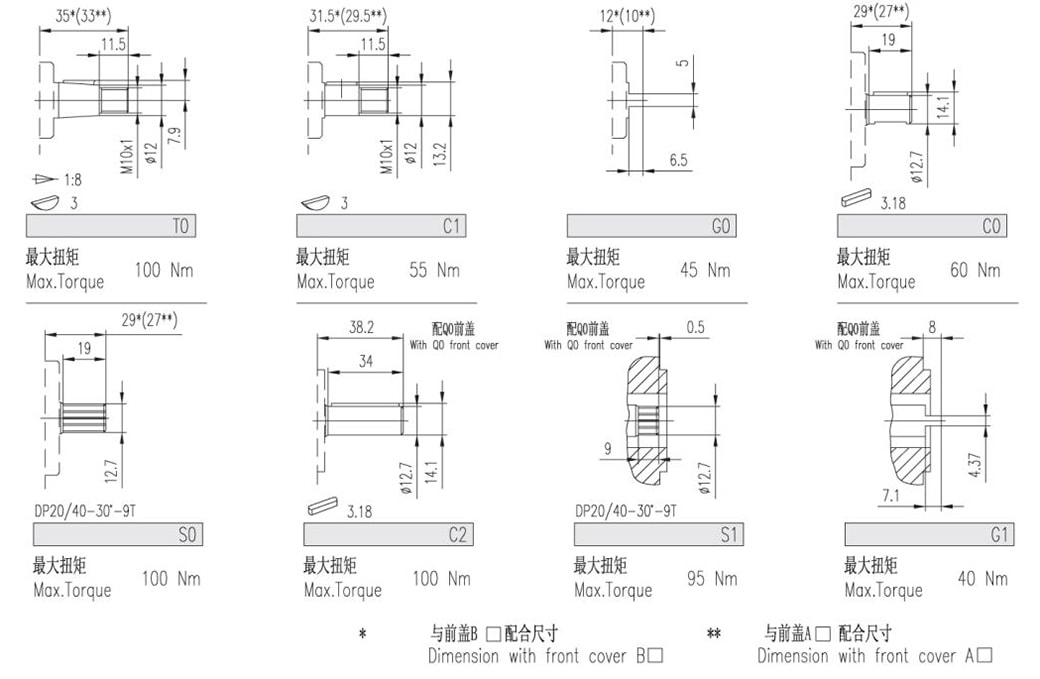

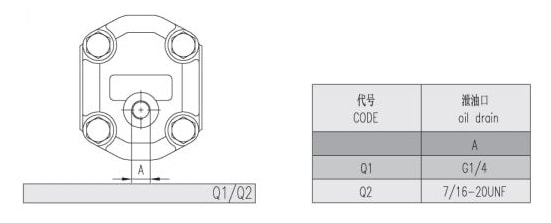

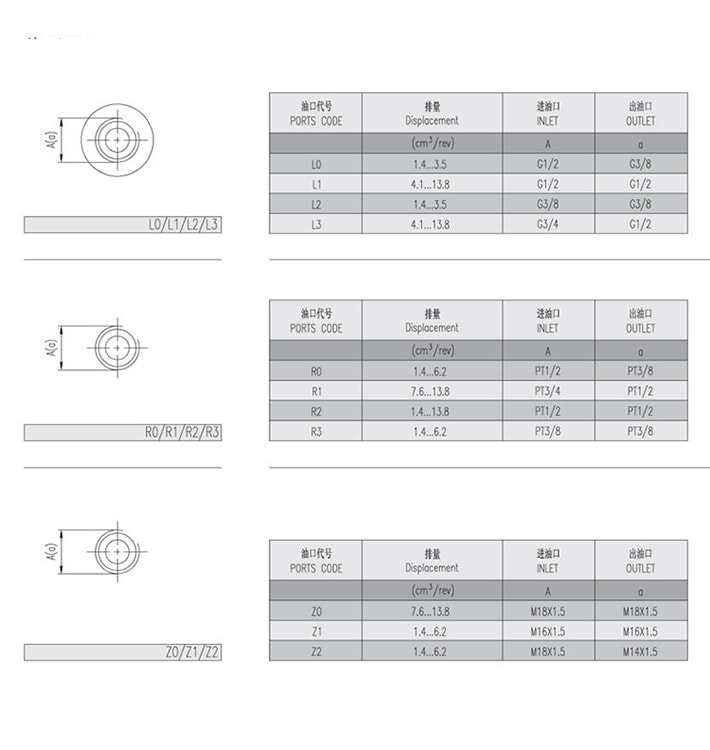

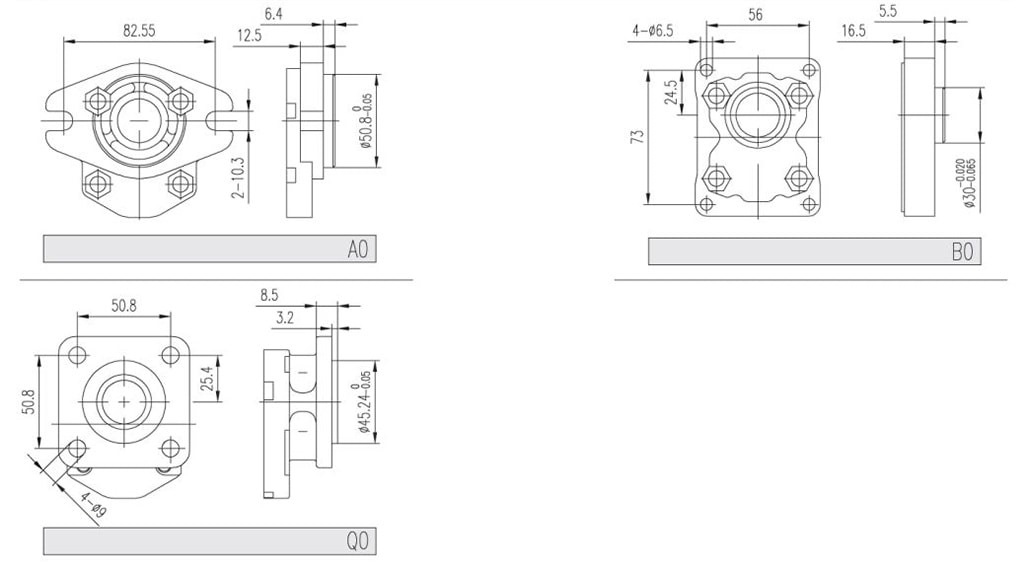

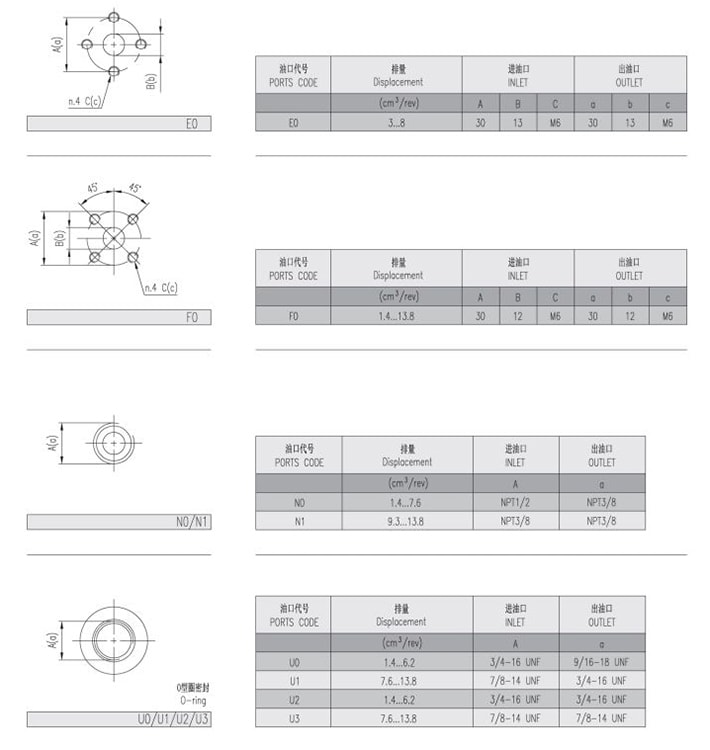

Group 1.25 External Gear Pump Ordering Code Rules

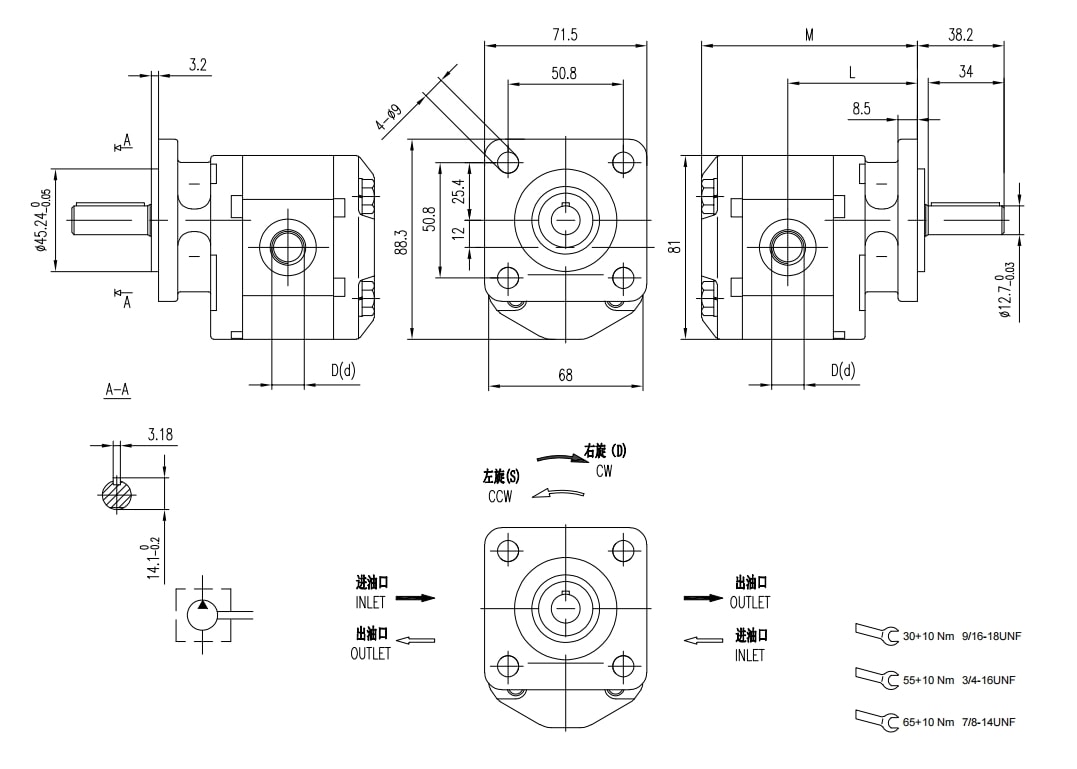

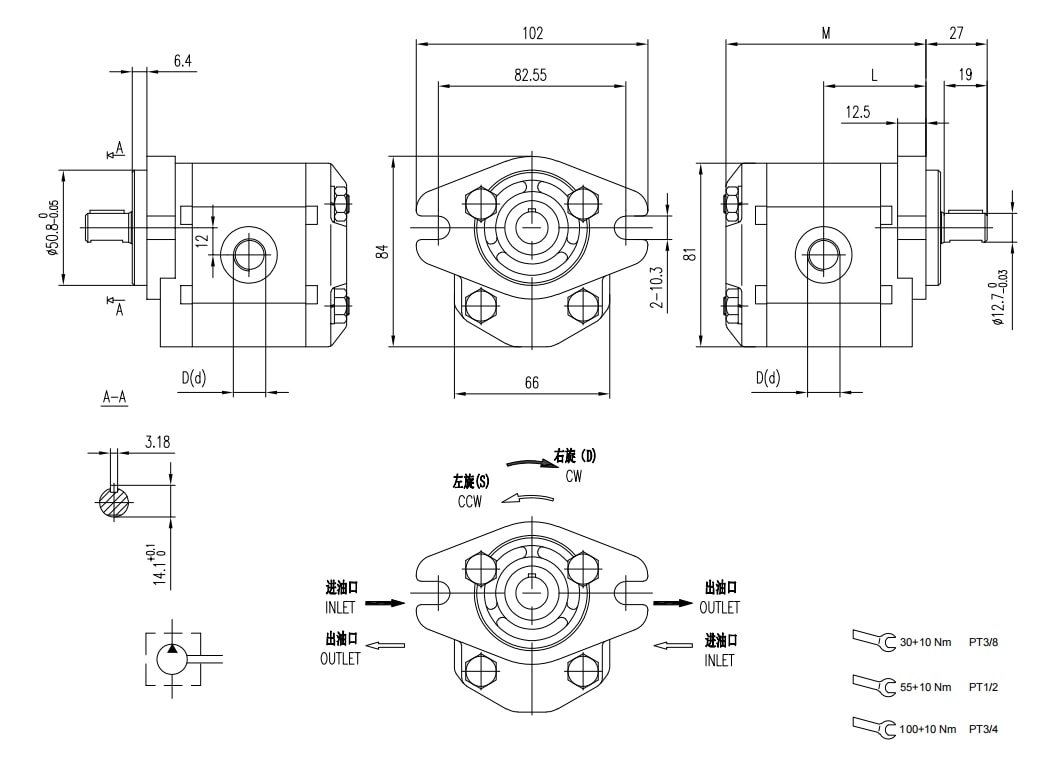

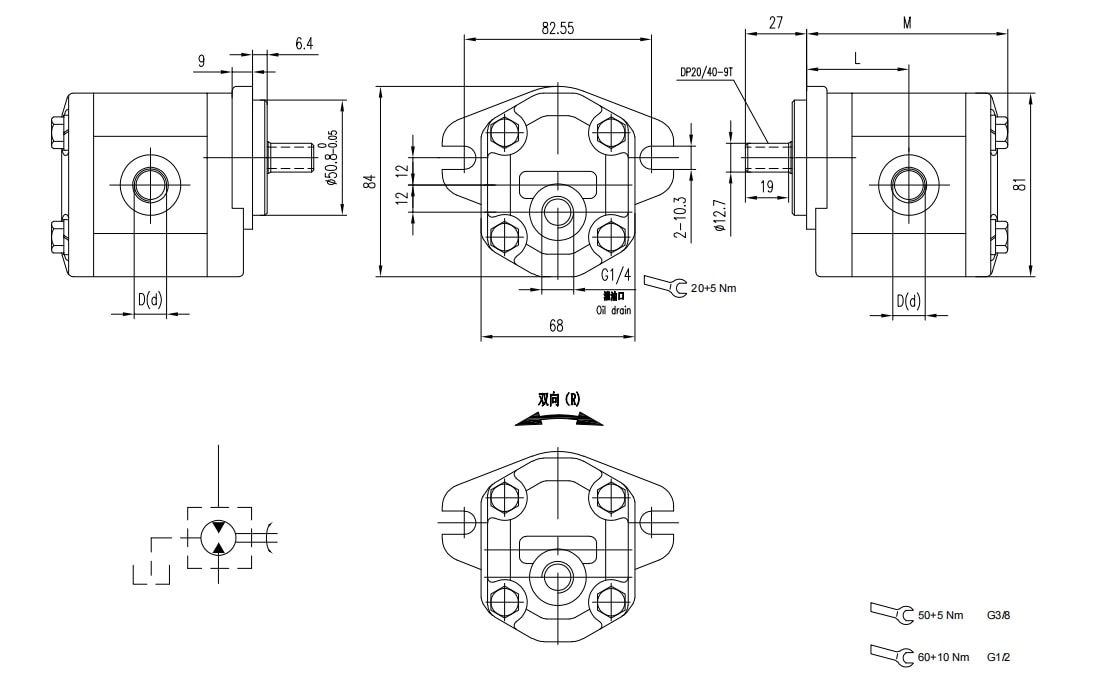

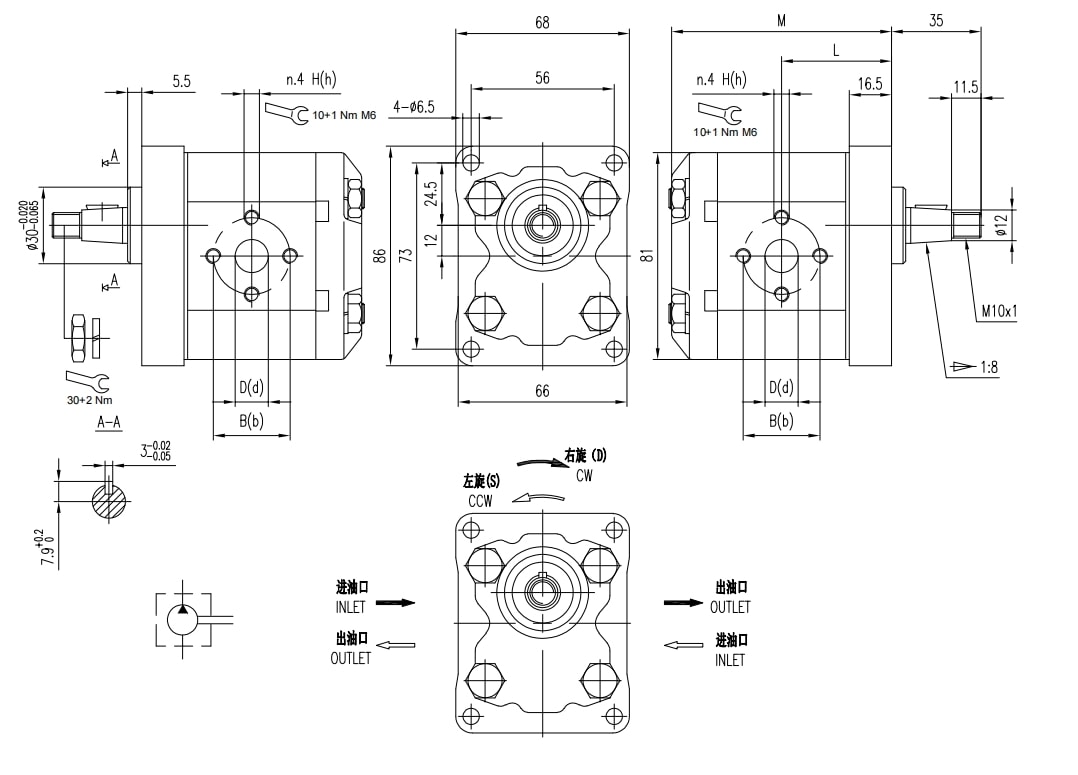

Standard Dimensions of Group 1.25 External Gear Pumps
Inquiry
Displacement | Max. pressure | Max. speed | Min. speed | Weight | Dimensions | Oil port code | Inlet | Outlet |
P1 | P2 | P3 | M | L | B | D | H | b | d | h |
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | | mm | mm | | mm | mm | |
1.4 | 250 | 270 | 290 | 6000 | 800 | 1.80 | 80.5 | 40 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
2.1 | 250 | 270 | 290 | 6000 | 800 | 1.835 | 82.5 | 41 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
2.8 | 250 | 270 | 290 | 5000 | 800 | 1.87 | 84.5 | 42 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
3.5 | 250 | 270 | 290 | 5000 | 800 | 1.905 | 86.5 | 43 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
4.1 | 250 | 270 | 290 | 4000 | 800 | 1.94 | 88.5 | 44 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
5.2 | 230 | 245 | 260 | 4000 | 800 | 2.02 | 91.5 | 45.5 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
6.2 | 230 | 245 | 260 | 3800 | 800 | 2.1 | 94.5 | 47 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
7.6 | 200 | 215 | 230 | 3200 | 600 | 2.17 | 98.5 | 49 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
9.3 | 180 | 195 | 210 | 2600 | 600 | 2.25 | 103.5 | 51.5 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
11.0 | 170 | 185 | 200 | 2200 | 600 | 2.345 | 108.5 | 54 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
13.8 | 150 | 165 | 180 | 1800 | 600 | 2.485 | 116.5 | 58 | E0 | 30 | 13 | M6 | 30 | 13 | M6 |
Inquiry
Displacement | Max. pressure | Max. speed | Min. speed | Weight | Dimensions | Oil port code | Inlet | Outlet |
P1 | P2 | P3 | M | L | D | d |
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | | | |
1.4 | 250 | 270 | 290 | 6000 | 800 | 1.80 | 80.5 | 40 | L0 | G1/2 | G3/8 |
2.1 | 250 | 270 | 290 | 6000 | 800 | 1.835 | 82.5 | 41 | L0 | G1/2 | G3/8 |
2.8 | 250 | 270 | 290 | 5000 | 800 | 1.87 | 84.5 | 42 | L0 | G1/2 | G3/8 |
3.5 | 250 | 270 | 290 | 5000 | 800 | 1.905 | 86.5 | 43 | L0 | G1/2 | G3/8 |
4.1 | 250 | 270 | 290 | 4000 | 800 | 1.94 | 88.5 | 44 | L3 | G3/4 | G1/2 |
5.2 | 230 | 245 | 260 | 4000 | 800 | 2.02 | 91.5 | 45.5 | L3 | G3/4 | G1/2 |
6.2 | 230 | 245 | 260 | 3800 | 800 | 2.1 | 94.5 | 47 | L3 | G3/4 | G1/2 |
7.6 | 200 | 215 | 230 | 3200 | 600 | 2.17 | 98.5 | 49 | L3 | G3/4 | G1/2 |
9.3 | 180 | 195 | 210 | 2600 | 600 | 2.25 | 103.5 | 51.5 | L3 | G3/4 | G1/2 |
11.0 | 170 | 185 | 200 | 2200 | 600 | 2.345 | 108.5 | 54 | L3 | G3/4 | G1/2 |
13.8 | 150 | 165 | 180 | 1800 | 600 | 2.485 | 116.5 | 58 | L3 | G3/4 | G1/2 |
Inquiry
Displacement | Max. pressure | Max. speed | Min. speed | Weight | Dimensions | Oil port code | Inlet | Outlet |
P1 | P2 | P3 | M | L | D | d |
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | | | |
1.4 | 250 | 270 | 290 | 6000 | 800 | 1.9 | 98 | 59 | U0 | 3/4-16UNF | 9/16-18UNF |
2.1 | 250 | 270 | 290 | 6000 | 800 | 1.94 | 100 | 60 | U0 | 3/4-16UNF | 9/16-18UNF |
2.8 | 250 | 270 | 290 | 5000 | 800 | 1.97 | 102 | 61 | U0 | 3/4-16UNF | 9/16-18UNF |
3.5 | 250 | 270 | 290 | 5000 | 800 | 2.01 | 104 | 62 | U0 | 3/4-16UNF | 9/16-18UNF |
4.1 | 250 | 270 | 290 | 4000 | 800 | 2.04 | 106 | 63 | U0 | 3/4-16UNF | 9/16-18UNF |
5.2 | 230 | 245 | 260 | 4000 | 800 | 2.15 | 109 | 64.5 | U0 | 3/4-16UNF | 9/16-18UNF |
6.2 | 230 | 245 | 260 | 3800 | 800 | 2.2 | 112 | 66 | U0 | 3/4-16UNF | 9/16-18UNF |
7.6 | 200 | 215 | 230 | 3200 | 600 | 2.27 | 116 | 68 | U1 | 7/8-14UNF | 3/4-16UNF |
9.3 | 180 | 195 | 210 | 2600 | 600 | 2.35 | 121 | 70.5 | U1 | 7/8-14UNF | 3/4-16UNF |
11 | 170 | 185 | 200 | 2200 | 600 | 2.45 | 126 | 73 | U1 | 7/8-14UNF | 3/4-16UNF |
13.8 | 150 | 165 | 180 | 1800 | 600 | 2.6 | 134 | 77 | U1 | 7/8-14UNF | 3/4-16UNF |
Inquiry
Displacement | Max. pressure | Max. speed | Min. speed | Weight | Dimensions | Oil port code | Inlet | Outlet |
P1 | P2 | P3 | M | L | D | d |
(cm³/rev.) | bar | bar | bar | (r/min) | (r/min) | Kg | mm | mm | | | |
1.4 | 250 | 270 | 290 | 6000 | 800 | 1.8 | 80.5 | 40 | L2 | G3/8 | G3/8 |
2.1 | 250 | 270 | 290 | 6000 | 800 | 1.835 | 82.5 | 41 | L2 | G3/8 | G3/8 |
2.8 | 250 | 270 | 290 | 5000 | 800 | 1.87 | 84.5 | 42 | L2 | G3/8 | G3/8 |
3.5 | 250 | 270 | 290 | 5000 | 800 | 1.905 | 86.5 | 43 | L2 | G3/8 | G3/8 |
4.1 | 250 | 270 | 290 | 4000 | 800 | 1.94 | 88.5 | 44 | L1 | G1/2 | G1/2 |
5.2 | 230 | 245 | 260 | 4000 | 800 | 2.02 | 91.5 | 45.5 | L1 | G1/2 | G1/2 |
6.2 | 230 | 245 | 260 | 3800 | 800 | 2.1 | 94.5 | 47 | L1 | G1/2 | G1/2 |
7.6 | 200 | 215 | 230 | 3200 | 600 | 2.17 | 98.5 | 49 | L1 | G1/2 | G1/2 |
9.3 | 180 | 195 | 210 | 2600 | 600 | 2.25 | 103.5 | 51.5 | L1 | G1/2 | G1/2 |
11 | 170 | 185 | 200 | 2200 | 600 | 2.345 | 108.5 | 54 | L1 | G1/2 | G1/2 |
13.8 | 150 | 165 | 180 | 1800 | 600 | 2.485 | 116.5 | 58 | L1 | G1/2 | G1/2 |
