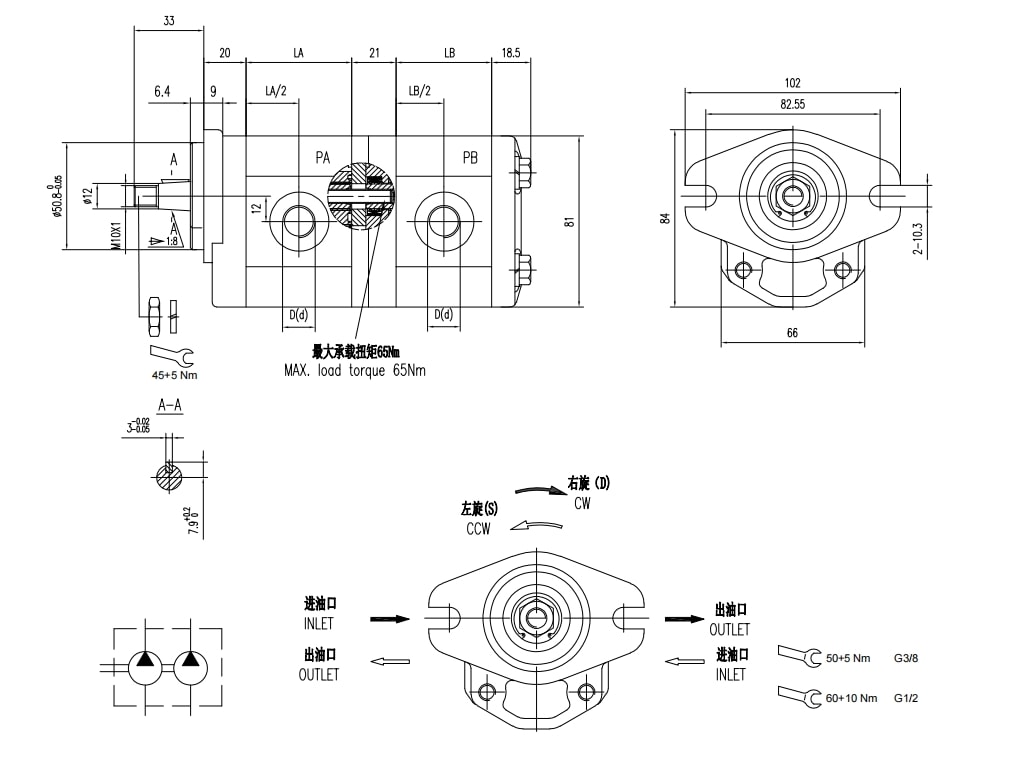

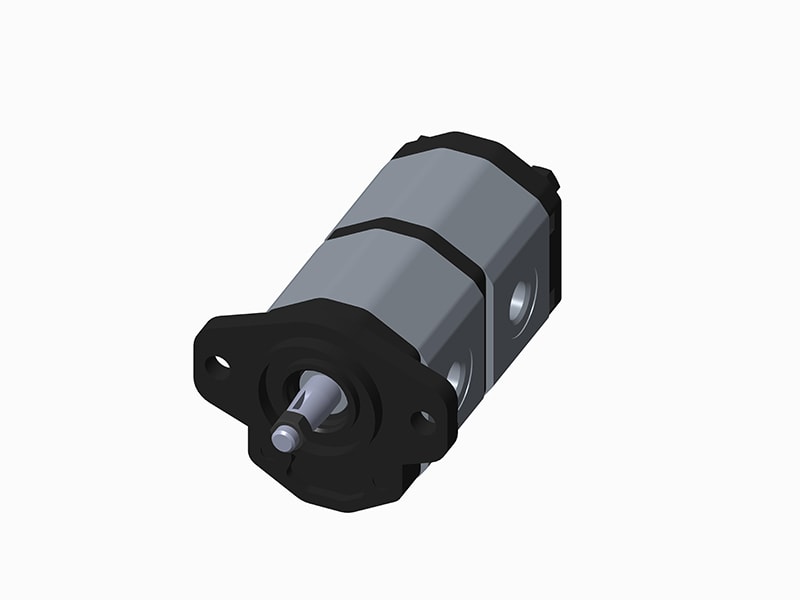

1.25/1.25 Tandem Gear Pump Standard Product Dimensions
Inquiry
Displacement | Max. pressure | Max. speed | Min. speed | Dimensions | Oil port code | Inlet | Outlet | Oil port code | Inlet | Outlet |
PA | PB | PA | PB | LA | LB | PA | D | d | PB | D | d |
(cm³/rev.) | (cm³/rev.) | bar | bar | (r/min) | (r/min) | mm | mm | | | | | | |
1.4 | 1.4 | 250 | 250 | 2500 | 600 | 44.1 | 44.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
2.1 | 2.1 | 250 | 250 | 46.1 | 46.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
2.8 | 2.8 | 250 | 250 | 48.1 | 48.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
3.5 | 3.5 | 250 | 250 | 50.1 | 50.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
4.1 | 4.1 | 250 | 250 | 52.1 | 52.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
5.2 | 5.2 | 230 | 230 | 55.1 | 55.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
6.2 | 6.2 | 230 | 230 | 58.1 | 58.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
7.6 | 7.6 | 200 | 200 | 62.1 | 62.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
9.3 | 9.3 | 180 | 180 | 67.1 | 67.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
11.0 | 11.0 | 170 | 170 | 72.1 | 72.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
13.8 | 13.8 | 150 | 150 | 80.1 | 80.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |

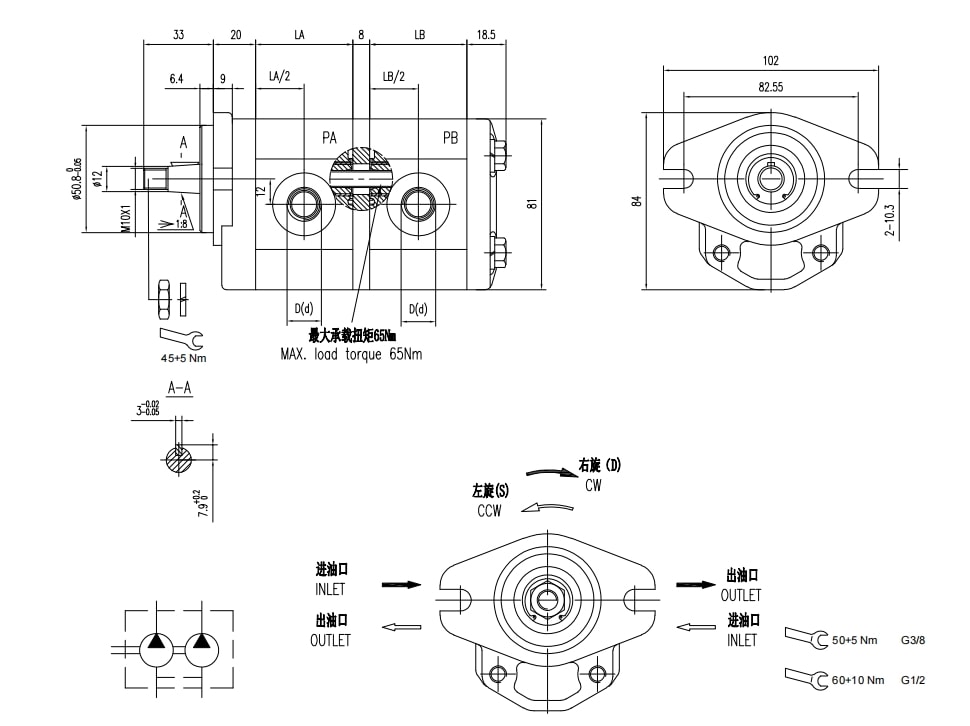

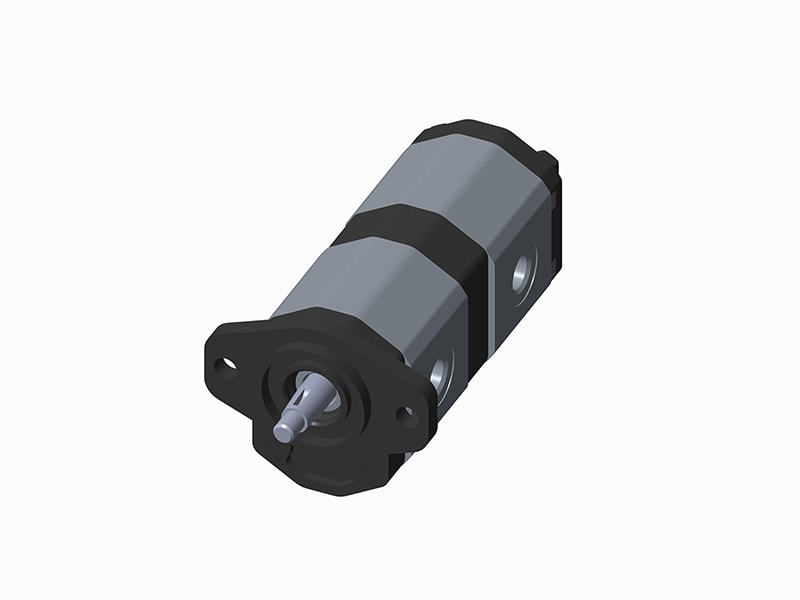

Inquiry
Displacement | Max. pressure | Max. speed | Min. speed | Dimensions | Oil port code | Inlet | Outlet | Oil port code | Inlet | Outlet |
PA | PB | PA | PB | | | LA | LB | PA | D | d | PB | D | d |
(cm³/rev.) | (cm³/rev.) | bar | bar | (r/min) | (r/min) | mm | mm | | | | | | |
1.4 | 1.4 | 250 | 250 | 2500 | 600 | 44.1 | 44.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
2.1 | 2.1 | 250 | 250 | 46.1 | 46.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
2.8 | 2.8 | 250 | 250 | 48.1 | 48.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
3.5 | 3.5 | 250 | 250 | 50.1 | 50.1 | L0 | G1/2 | G3/8 | L0 | G1/2 | G3/8 |
4.1 | 4.1 | 250 | 250 | 52.1 | 52.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
5.2 | 5.2 | 230 | 230 | 55.1 | 55.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
6.2 | 6.2 | 230 | 230 | 58.1 | 58.1 | L1 | G1/2 | G1/2 | L1 | Feb-61 | G1/2 |
7.6 | 7.6 | 200 | 200 | 62.1 | 62.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
9.3 | 9.3 | 180 | 180 | 67.1 | 67.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
11 | 11 | 170 | 170 | 72.1 | 72.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
13.8 | 13.8 | 150 | 150 | 80.1 | 80.1 | L1 | G1/2 | G1/2 | L1 | G1/2 | G1/2 |
