Flow Dividers

Synchronous Flow Divider, Group 2 (3~250cm³/rev.)

A combination of multiple hydraulic gear motors connected by a shaft

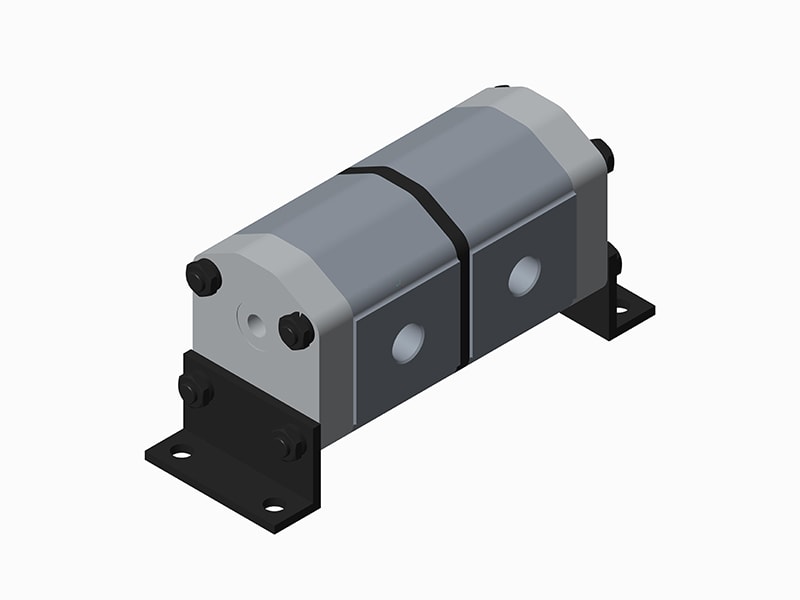

Synchronous Flow Divider, Group 2
Technical Information
  • Displacement: 3~250cm³/rev.
  • Rotation direction: reversible (R)
  • Min. speed: 600r/min
  • Max. speed: 2500r/min
  • Peak pressure: 150~250bar
Request a Quote

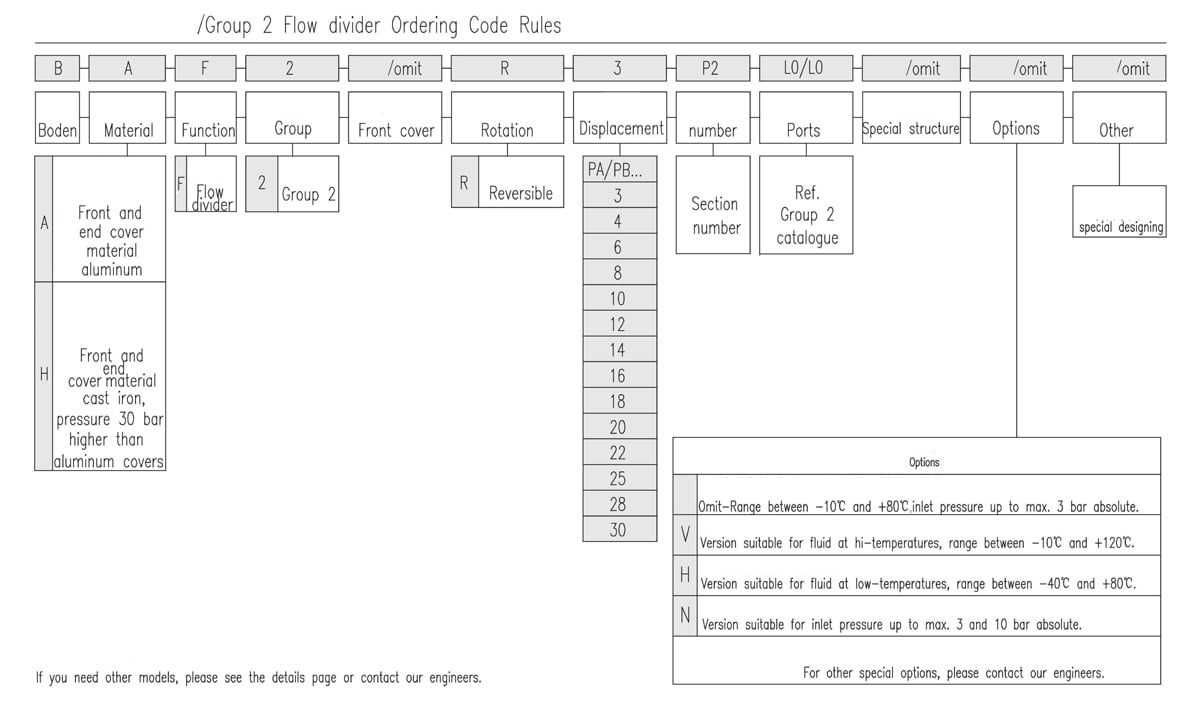

Group 2 Synchronous Flow Divider Ordering Code Rules
PDF download
Group 2 Synchronous Flow Divider Ordering Code Rules

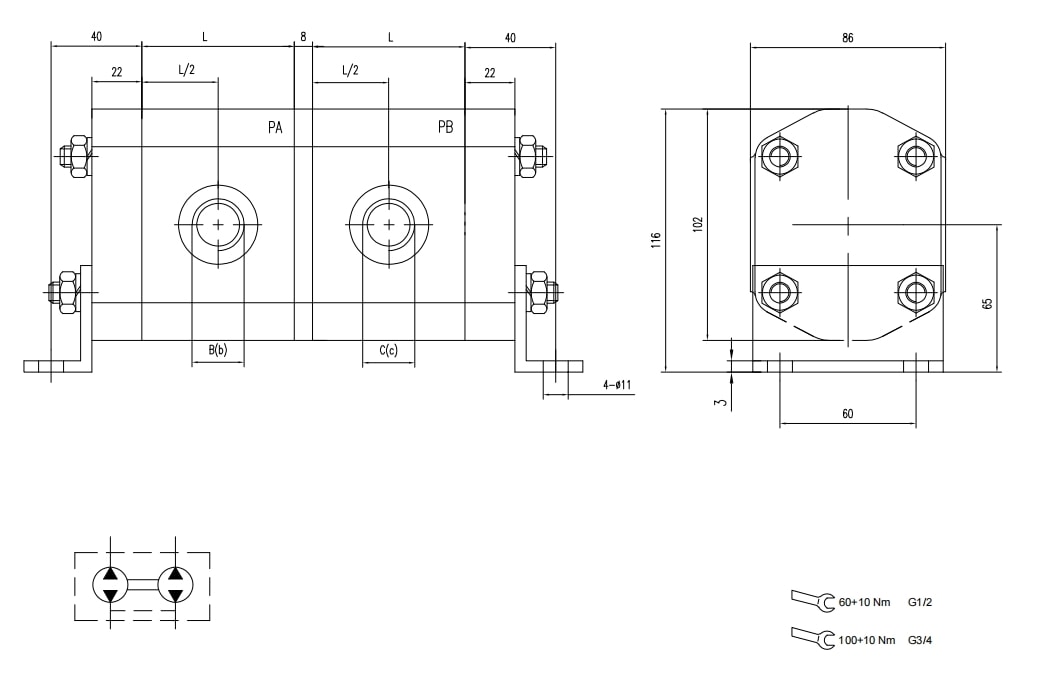

Group 2 Synchronous Flow Divider Standard Product Dimensions
Synchronous Flow Divider, Group 2
Synchronous Flow Divider, Group 2
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PA L PA B c PB C c
(cm³/rev.) bar (r/min) (r/min) mm
3 250 2500 600 49.1 L0 G1/2 G1/2 L0 G1/2 G1/2
4 250 50.7 L0 G1/2 G1/2 L0 G1/2 G1/2
6 250 54 L0 G1/2 G1/2 L0 G1/2 G1/2
8 230 57.3 L4 G3/4 G3/4 L4 G3/4 G3/4
10 230 60.6 L4 G3/4 G3/4 L4 G3/4 G3/4
12 230 63.9 L4 G3/4 G3/4 L4 G3/4 G3/4
14 230 67.3 L4 G3/4 G3/4 L4 G3/4 G3/4
16 210 70.7 L4 G3/4 G3/4 L4 G3/4 G3/4
18 210 74 L4 G3/4 G3/4 L4 G3/4 G3/4
20 200 77.3 L4 G3/4 G3/4 L4 G3/4 G3/4
22 200 80.6 L4 G3/4 G3/4 L4 G3/4 G3/4
25 190 85.6 L4 G3/4 G3/4 L4 G3/4 G3/4
28 170 90.6 L4 G3/4 G3/4 L4 G3/4 G3/4
30 150 93.9 L4 G3/4 G3/4 L4 G3/4 G3/4
