Flow Dividers

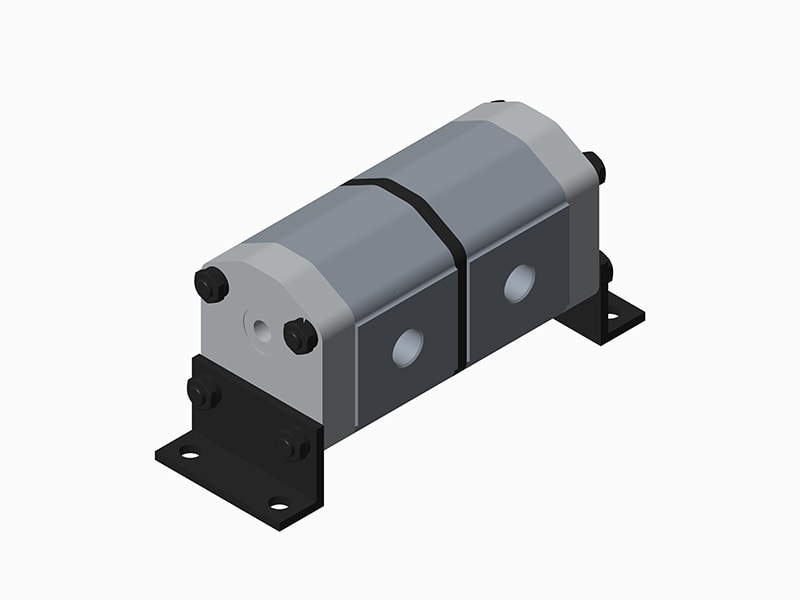

Synchronous Flow Divider, Group 1.25 (1.4~230cm³/rev.)

A combination of multiple hydraulic gear motors connected by a shaft
Synchronous Flow Divider, Group 1.25
Technical Information
  • Displacement: 1.4~230cm³/rev.
  • Rotation direction: reversible (R)
  • Min. speed: 600r/min
  • Max. speed: 2500r/min
  • Peak pressure: 150~230bar
Request a Quote

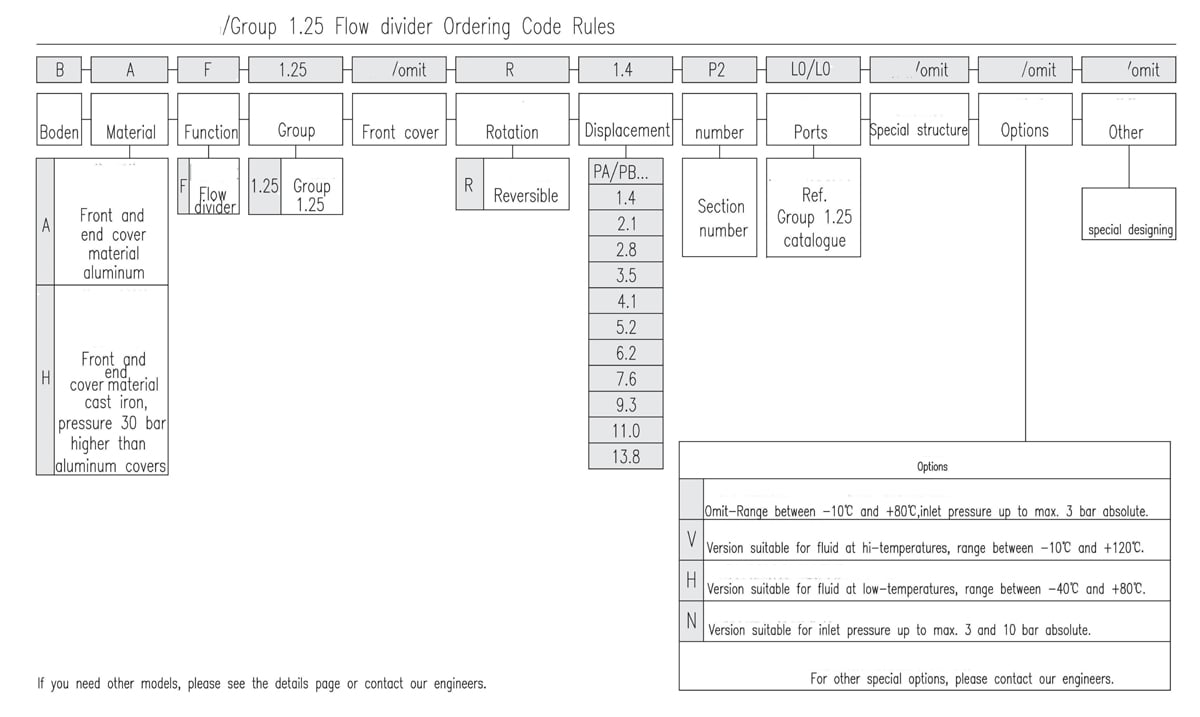

Group 1.25 Synchronous Flow Divider Ordering Code Rules
PDF download
Group 1.25 Synchronous Flow Divider Ordering Code Rules

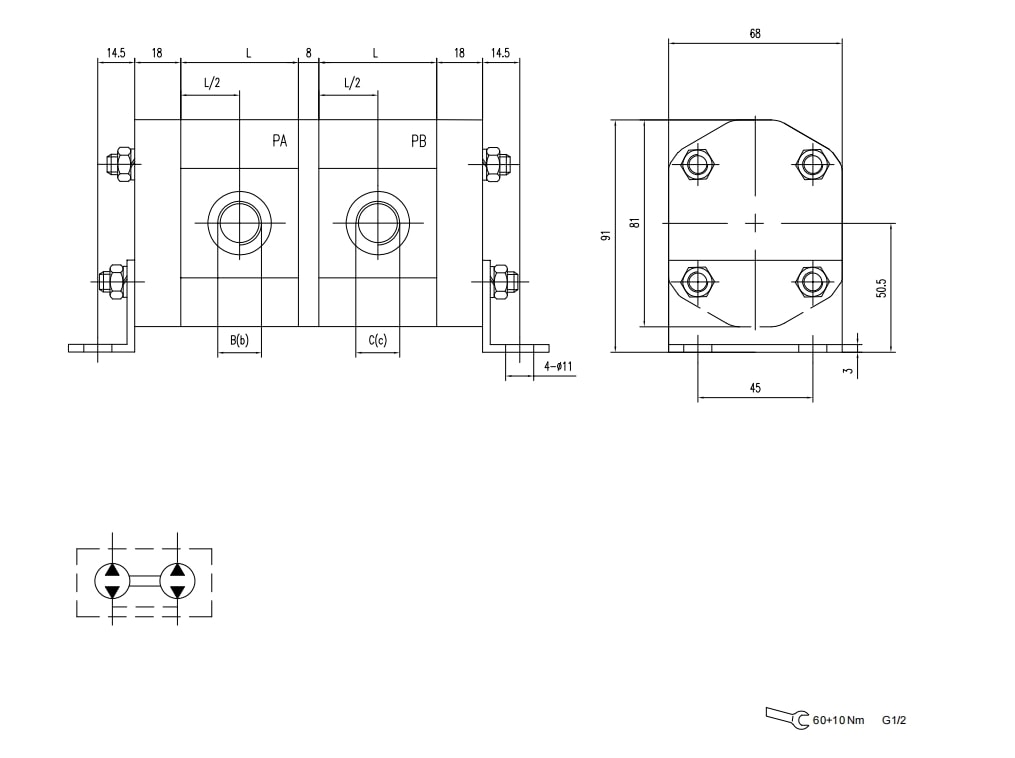

Group 1.25 Synchronous Flow Divider Standard Product Dimensions
Synchronous Flow Divider, Group 1.25
Synchronous Flow Divider, Group 1.25
Inquiry
Displacement Max. pressure Max. speed Min. speed Dimensions Oil port code Inlet Outlet Oil port code Inlet Outlet
PA PA L PA B c PB C c
(cm³/rev.) bar (r/min) (r/min) mm
1.4 230 2500 600 44.1 L1 G1/2 G1/2 L1 G1/2 G1/2
2.1 230 46.1 L1 G1/2 G1/2 L1 G1/2 G1/2
2.8 230 48.1 L1 G1/2 G1/2 L1 G1/2 G1/2
3.5 210 50.1 L1 G1/2 G1/2 L1 G1/2 G1/2
4.1 210 52.1 L1 G1/2 G1/2 L1 G1/2 G1/2
5.2 200 55.1 L1 G1/2 G1/2 L1 G1/2 G1/2
6.2 200 58.1 L1 G1/2 G1/2 L1 G1/2 G1/2
7.6 180 62.1 L1 G1/2 G1/2 L1 G1/2 G1/2
9.3 170 67.1 L1 G1/2 G1/2 L1 G1/2 G1/2
11 170 72.1 L1 G1/2 G1/2 L1 G1/2 G1/2
13.8 150 80.1 L1 G1/2 G1/2 L1 G1/2 G1/2
