External Gear Pumps

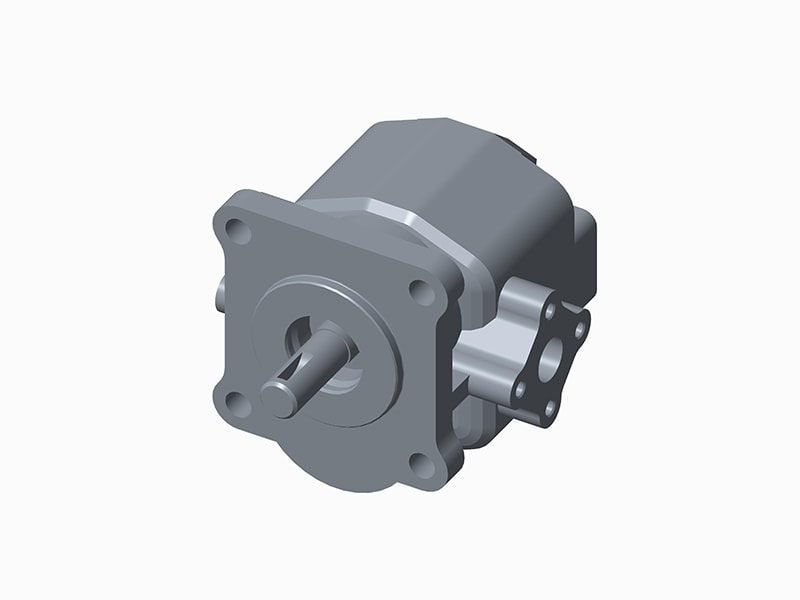

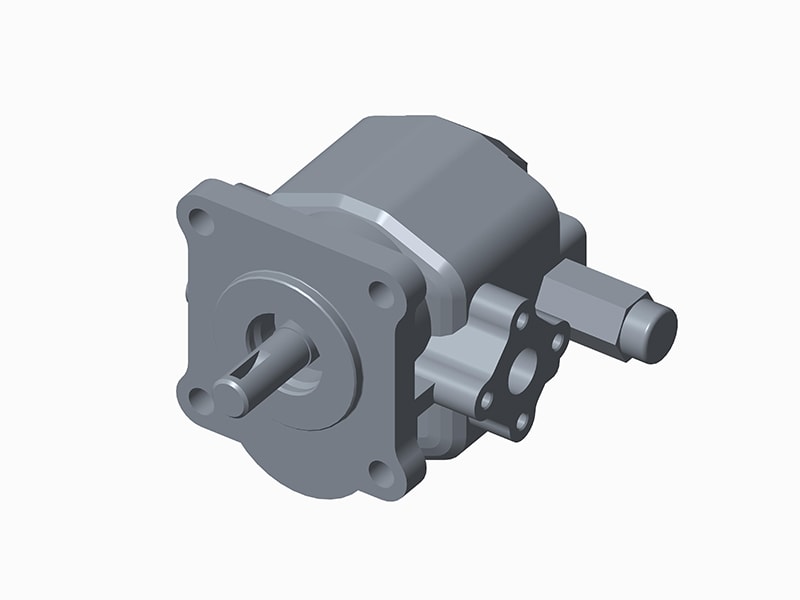

External Gear Pump, Group 1.5 (2~12cm³/rev.)

Hydraulic pumps
External Gear Pump, Group 1.5
External Gear Pump, Group 1.5 External Gear Pump, Group 1.5
Technical Information
  • Displacement: 2~12cm³/rev.
  • Rotation direction: clockwise (D), counter-clockwise(S)
  • Min. speed: 500~900r/min
  • Max. speed: 2000~5000r/min
  • Peak pressure: 220~250bar
Performance Curve Table
Served Industry
  • Hydraulic system
Request a Quote
Features
  • Low noise, high efficiency, long life service
  • High performance even at low speeds
  • Leakage-free shaft seal
Group 1.5 External Gear Pump Technical Parameter
Displacement Suction absolute pressure Max. continuous pressure Max. intermittent pressure Max. peak pressure Min. speed Max. speed Volumetric efficiency
Y Pe P1 P2 P3 nmin nmax ηv
cm³/rev. bar r/min %
2 0.7...3 210 230 250 900 5000 ≥91
3 850
4 800 4500
5 4000
6 700 3500 ≥92
8 600 3000
9 180 200 220 550 2500
11 500 2000 ≥93
12

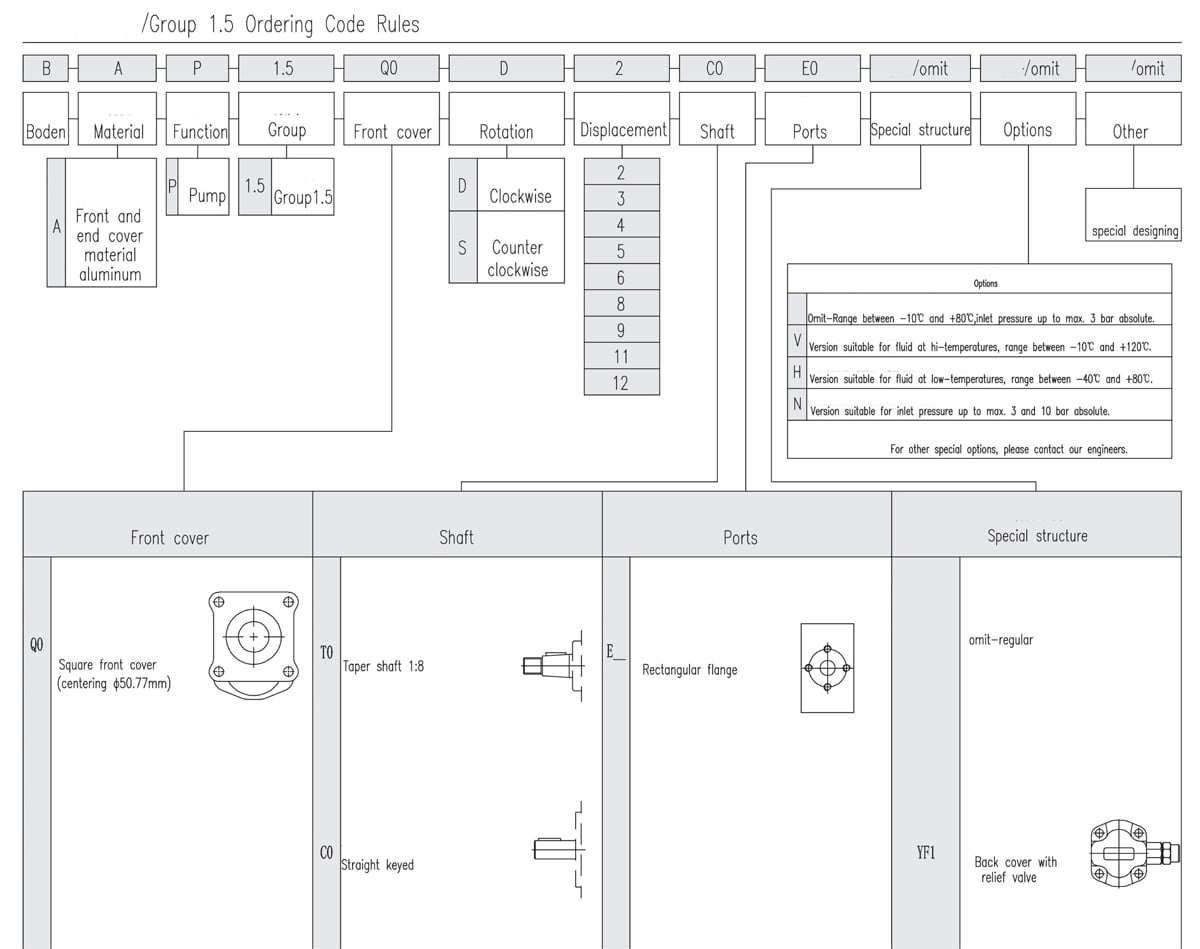

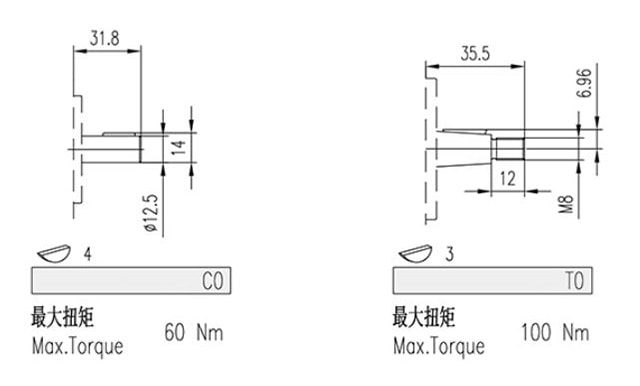

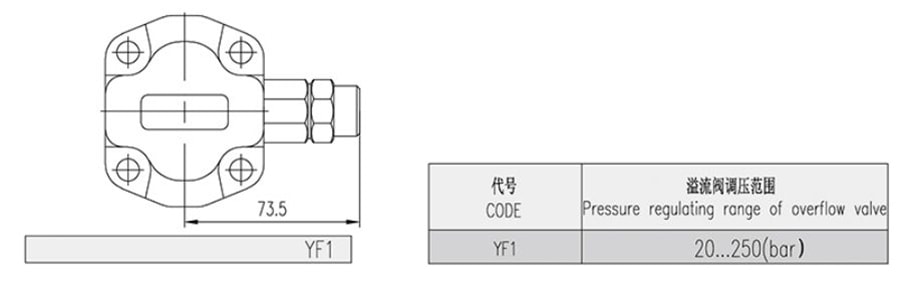

Group 1.5 External Gear Pump Ordering Code Rules
External Gear Pump, Group 1.5
External Gear Pump, Group 1.5
External Gear Pump, Group 1.5
External Gear Pump, Group 1.5

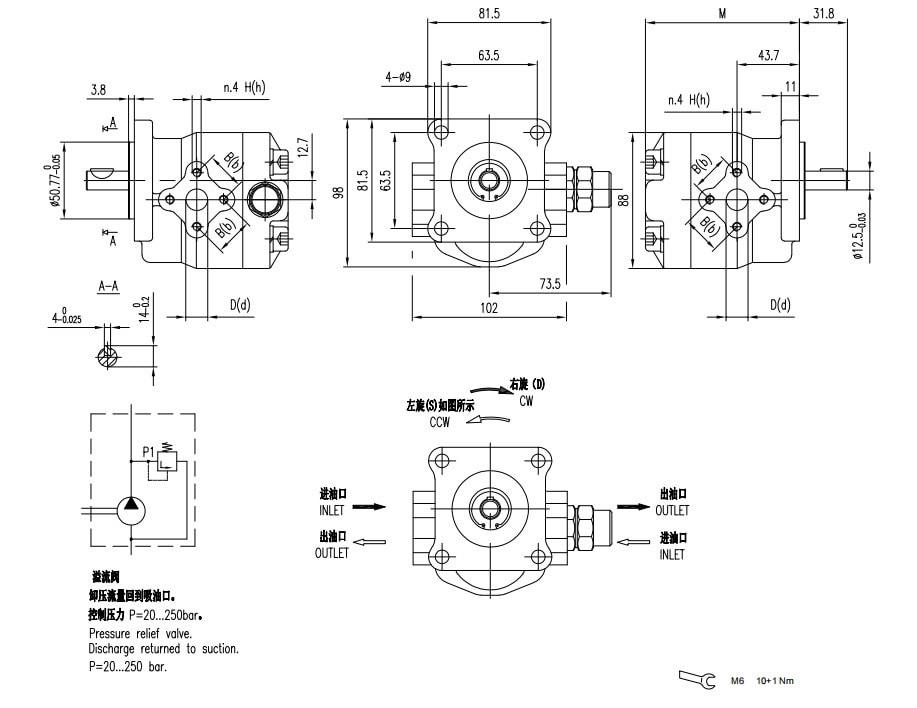

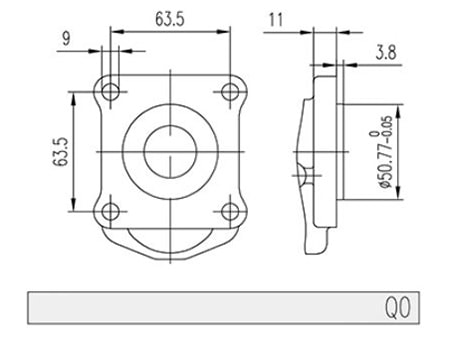

Standard Dimensions of Group 1.5 External Gear Pumps
External Gear Pump, Group 1.5
External Gear Pump, Group 1.5
Inquiry

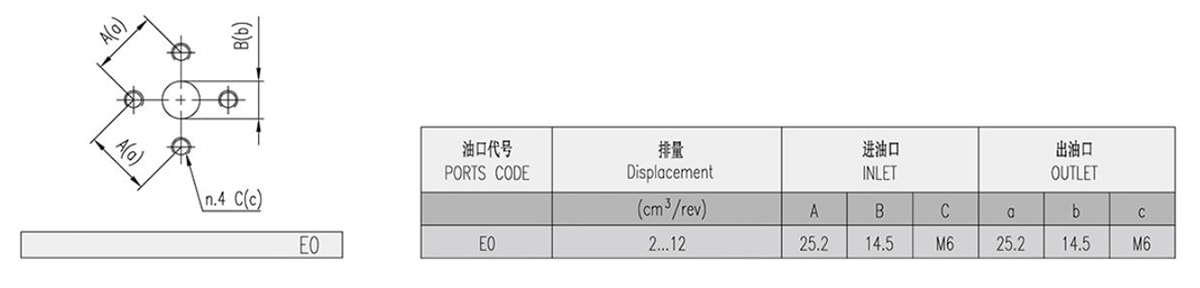

Displacement Max. pressure Max. speed Min. speed Weight Dimensions Oil port code Inlet D Outlet d
P1 P2 P3 B D H b d h
(cm³/rev.) bar bar bar (r/min) (r/min) Kg mm mm mm mm mm
2 210 230 250 5000 900 1.45 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
3 210 230 250 5000 850 1.47 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
4 210 230 250 4500 800 1.5 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
5 210 230 250 4000 800 1.53 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
6 210 230 250 3500 700 1.55 99.7 E0 25.2 14.5 M6 25.2 14.5 M6
8 210 230 250 3000 600 1.6 99.7 E0 25.2 14.5 M6 25.2 14.5 M6
9 180 200 220 2500 550 1.62 102.7 E0 25.2 14.5 M6 25.2 14.5 M6
11 180 200 220 2000 500 1.67 105.7 E0 25.2 14.5 M6 25.2 14.5 M6
12 180 200 220 2000 500 1.72 105.7 E0 25.2 14.5 M6 25.2 14.5 M6

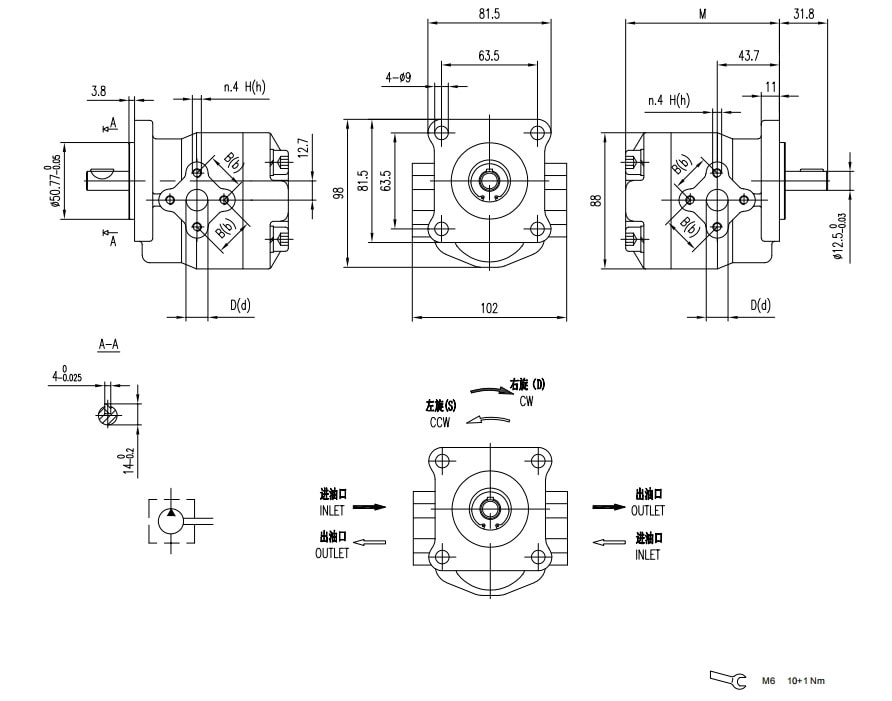

Standard Dimensions of Group 1.5 External Gear Pumps
Standard Dimensions of Group 1.5 External Gear Pumps
Inquiry
Displacement Max. pressure Max. speed Min. speed Weight Dimensions Oil port code Inlet Outlet
P1 P2 P3 B D H b d h
(cm³/rev.) bar bar bar (r/min) (r/min) Kg mm mm mm mm mm
2 210 230 250 5000 900 1.55 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
3 210 230 250 5000 850 1.57 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
4 210 230 250 4500 800 1.6 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
5 210 230 250 4000 800 1.63 96.7 E0 25.2 14.5 M6 25.2 14.5 M6
6 210 230 250 3500 700 1.65 99.7 E0 25.2 14.5 M6 25.2 14.5 M6
8 210 230 250 3000 600 1.7 99.7 E0 25.2 14.5 M6 25.2 14.5 M6
9 180 200 220 2500 550 1.72 102.7 E0 25.2 14.5 M6 25.2 14.5 M6
11 180 200 220 2000 500 1.77 105.7 E0 25.2 14.5 M6 25.2 14.5 M6
12 180 200 220 2000 500 1.82 105.7 E0 25.2 14.5 M6 25.2 14.5 M6
